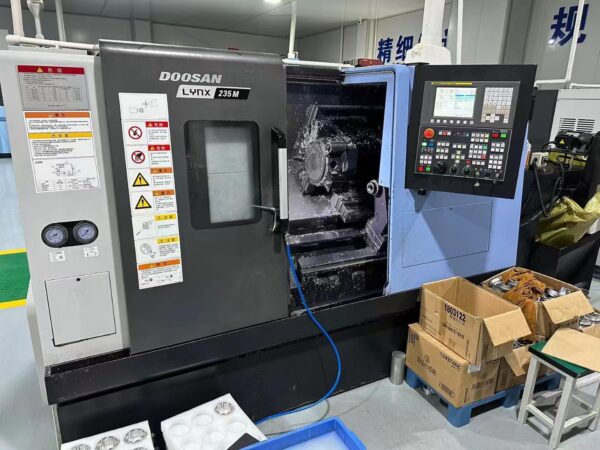

Doosan Lynx 235M CNC lathe with live tooling for precision turning, drilling and milling operations in one setup.
This machine is suitable for manufacturers that need a compact turning center for shafts, sleeves, discs, fittings and precision metal parts. Live tooling helps reduce secondary operations and improve production efficiency.
Key applications:
• Precision turning for metal parts
• Drilling and milling with live tooling
• Shafts, sleeves, fittings and small mechanical components
• Batch production for CNC workshops
• General metalworking and machinery parts manufacturing
Machine details:
• Year: 2020

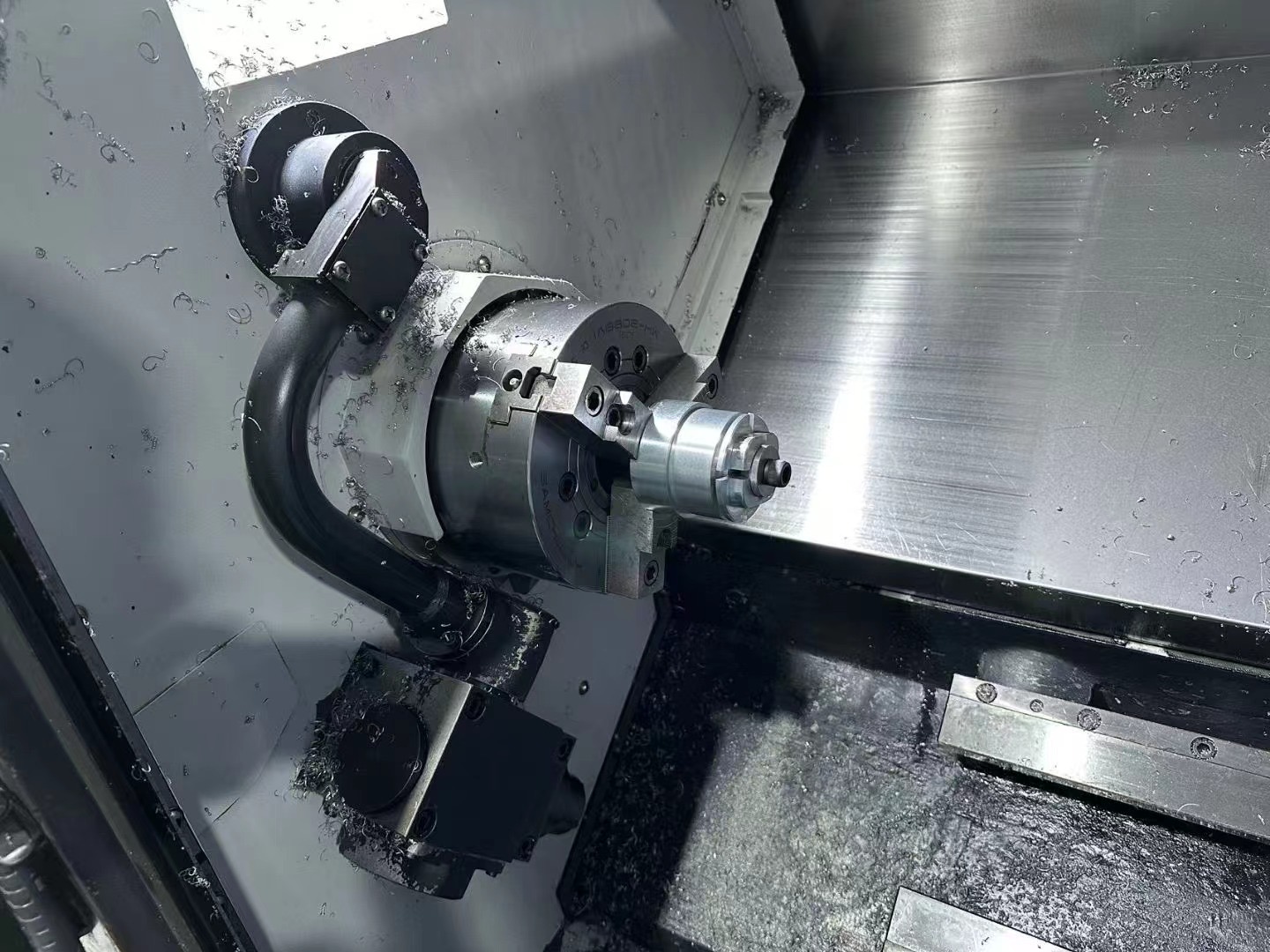

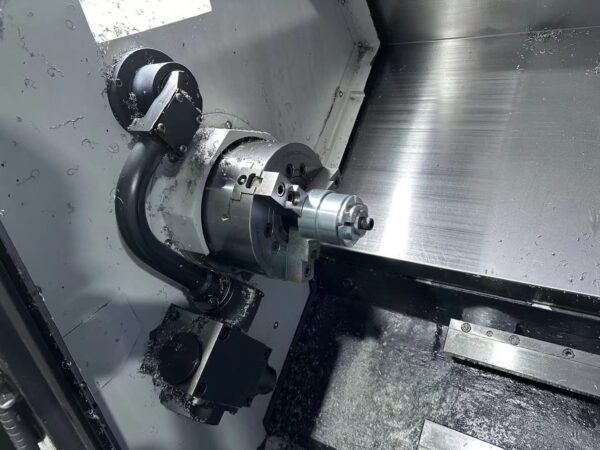

• Chuck size: 8 inch
• Recommended turning diameter: 210 mm
• Max turning diameter: 250 mm
• Max turning length: 480 mm
• Bar capacity: 65 mm
• Spindle speed: up to 4,500 rpm
• Spindle nose: A2#6
• Axis travel: X 175 mm | Z 550 mm | A 360 mm | C 200 mm
• Machine size: 2,795 × 1,620 × 1,650 mm
• Machine weight: 3,300 kg
• Equipped with chip conveyor

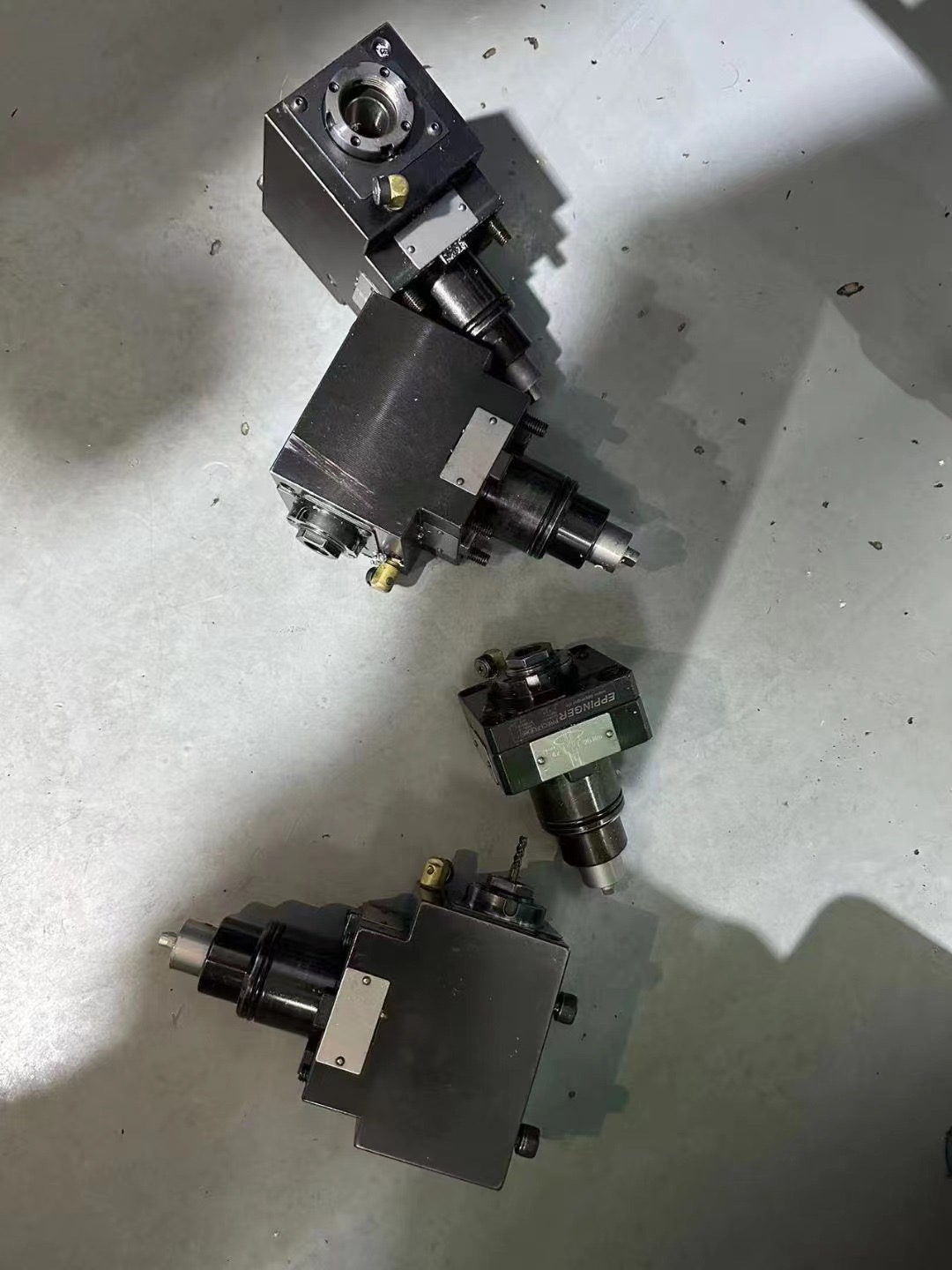

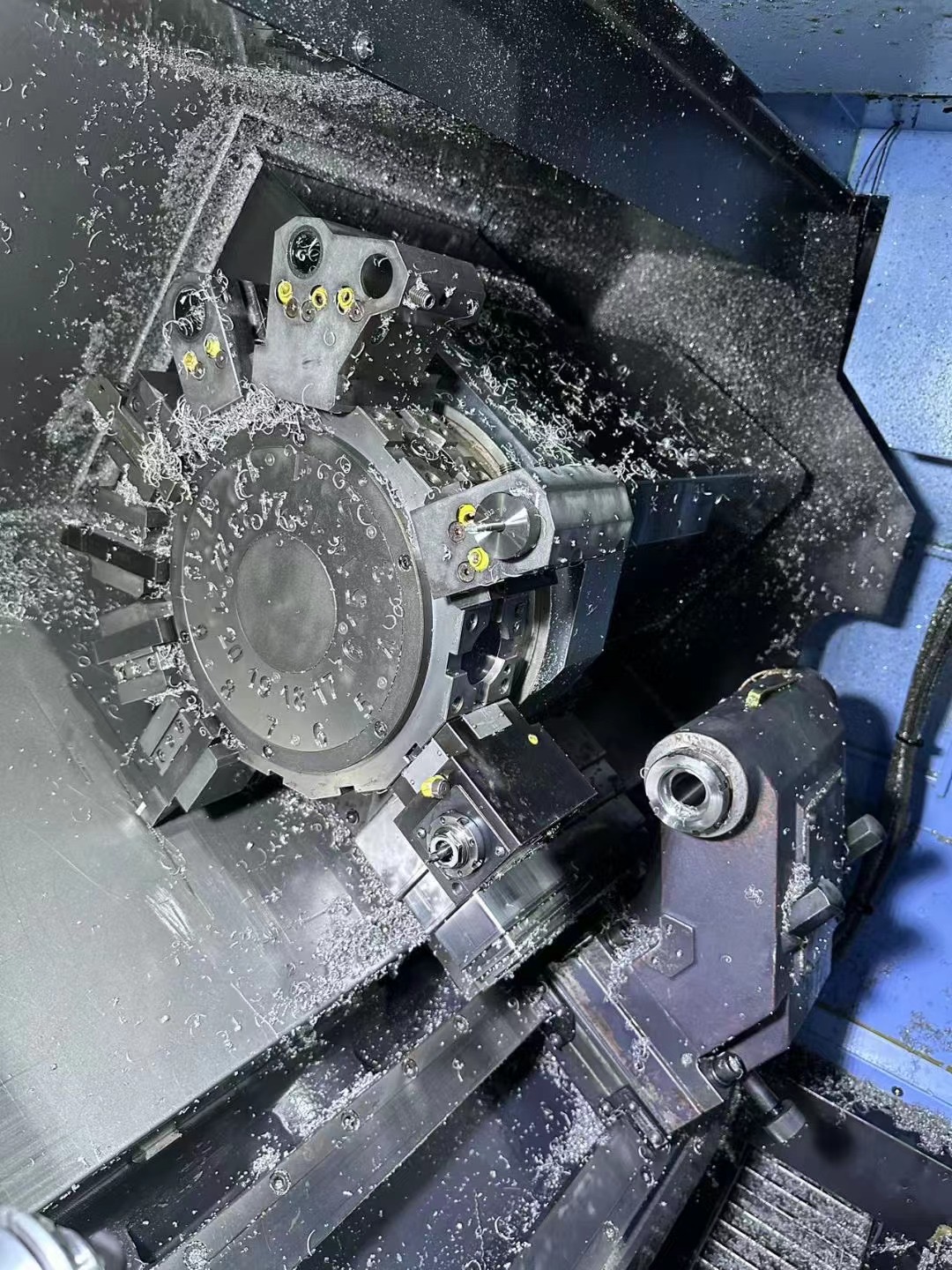

• Live tooling configuration for complex machining tasks
Buyer support:
• Machine videos and condition details available on request
• Inspection support before shipment
• Export packing and shipping options can be arranged
• Quotation available after confirming your workpiece and process requirements
Contact us with your material, workpiece size and machining process. We can help check whether this Doosan Lynx 235M fits your production needs.
